Arm-Mounted Panel PCs
Enhanced mounting flexibility and control operation
Arm-Mounted Panel PCs Series
Arm-mounted Panel PC HMI featured a full IP65-rated enclosure for maximum protection and a wide array of customizable button options to enhance functionality for automation operation panel applications.

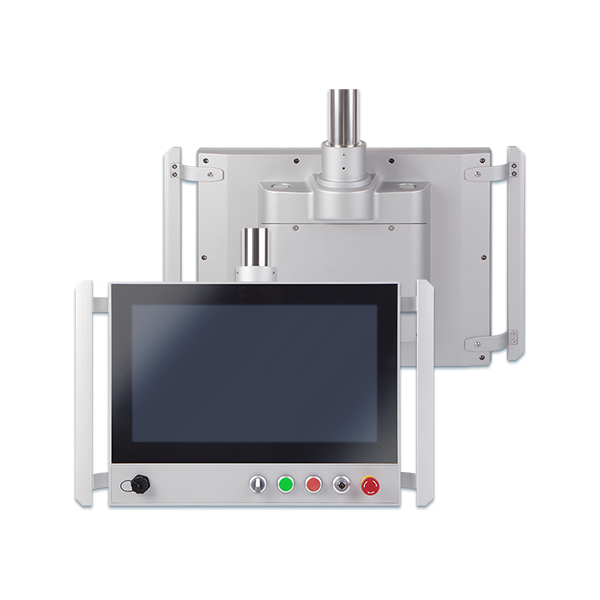

ICP69XXX Arm-Mounted Panel PC Series
IP65 fanless design, swing arm options, support Intel® Celeron® J1900 or J6412 and i5 7200U, 15”, 18.5”, 19” and 21.5” multi-touch, customizable button options
Arm-mounted Panel PC HMI Features
Nodka’s Arm-mounted Panel PC product line offers robust and versatile solutions for industrial automation environments. These panel PCs feature customizable button options, including RAFIX 22 FS+ push buttons with interchangeable colored lenses and various switch types, enhancing functionality and user interaction. Available in sizes from 15″ to 21.5″, both 4:3 and 16:9 aspect ratios, these panel PCs are equipped with Intel® processors, advanced multi-touch capabilities, built-in supercapacitor power backup options and fanless full IP65-rated enclosure design tailored to meet diverse industrial operation panel application needs.

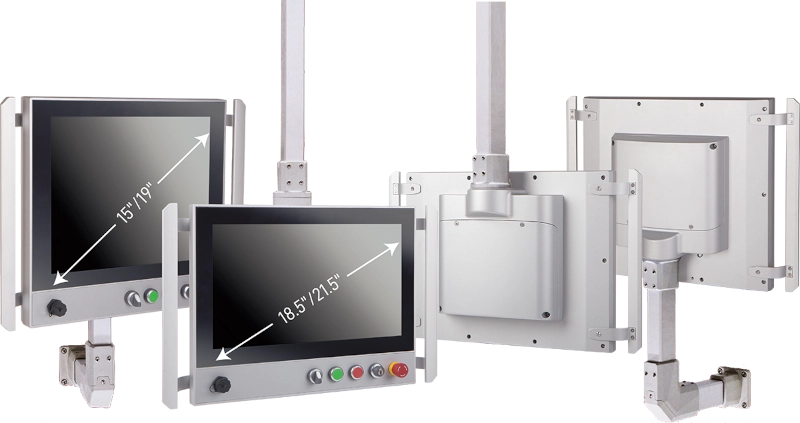

Customizable Arm Mounting Options
Multiple mounting options are available like top or bottom Rittal CP40 compatible arm mounting. Mounting elements include 90-degree elbow, flange coupling, setup joint, intermediate joint, base bracket, elbow coupling, rotation base, wall joint, tubes and keyboard shelf.

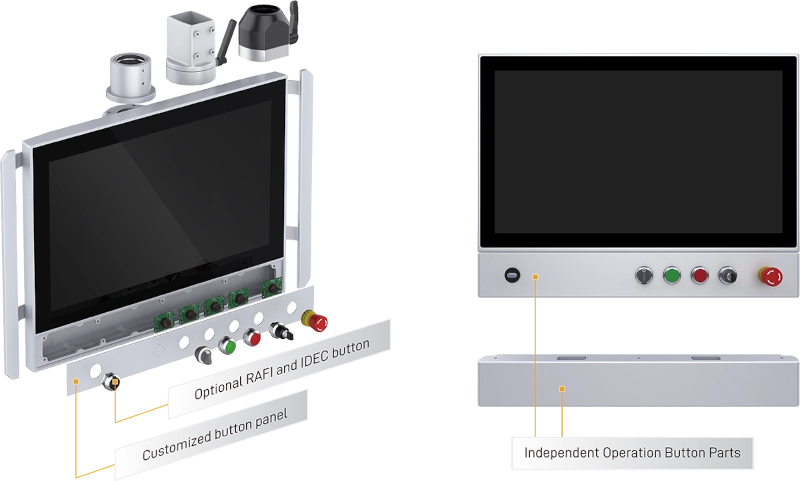

Customizable Arm Mounting Options
Nodka offers a wide array of customizable button options to enhance functionality and user interaction. These include the versatile RAFIX 22 FS+ pushbutton, which comes with five interchangeable colored lenses and features both normally closed and normally open contacts, as well as white LED illumination. Additionally, the line features RAFIX 22 FS+ selector and key switches, an emergency stop button, an IP65 USB feed-through, and RAFIX FS switching elements with emergency stop and universal PCBs with light guides, providing robust solutions for diverse industrial requirements.
